Model: WRS-014

LEDADVANTAGE's compact range of rocker switches have been in demand due to the low-profile waterproof design.

Quality Marine product. Rubber Sealed non-obtrusive compact Switches, An economical and compact switch that is best installed on boats and caravans.

4.5mm male spade on back (2 Pin)

This switch has a black rubber seal to protect water ingress into the switch, whilst allowing for flexibility to turn switch on and off.

Key hole slot prevents unwanted movement.

Latching On/Off Labelled Front Panel (I O)

Material Description: Rubber Seal Caps
Rating: 12V - 20A
Life: > 10,000 Cycles

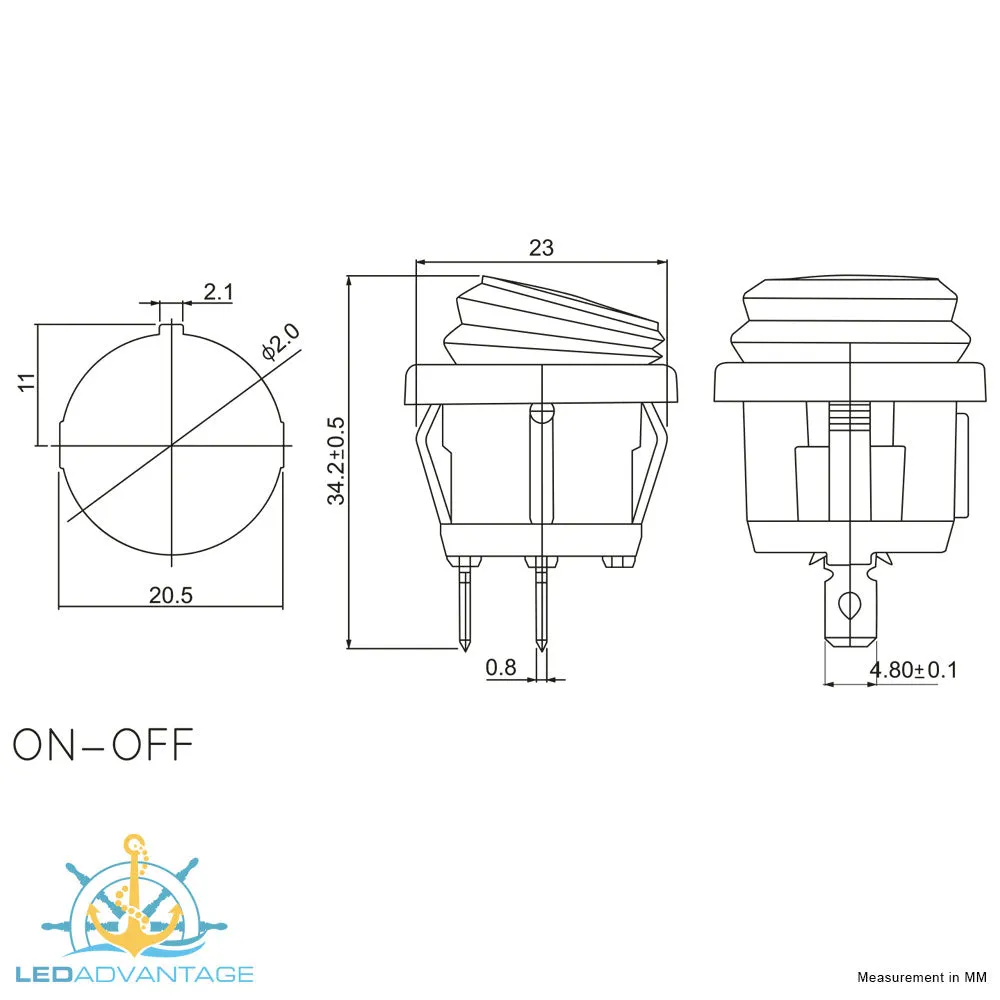

Mounting Hole/Cut-out Hole: 22mm
Button Color: Black
Terminal Quantity: 2
Body Color: Black
Contact Resistance: 35 mΩ max
Insulation Resistance: 100MΩ Min
Dielectric Strength: 1500VAC/1min
Operating Temperature: -25~85°C
